RT007DA

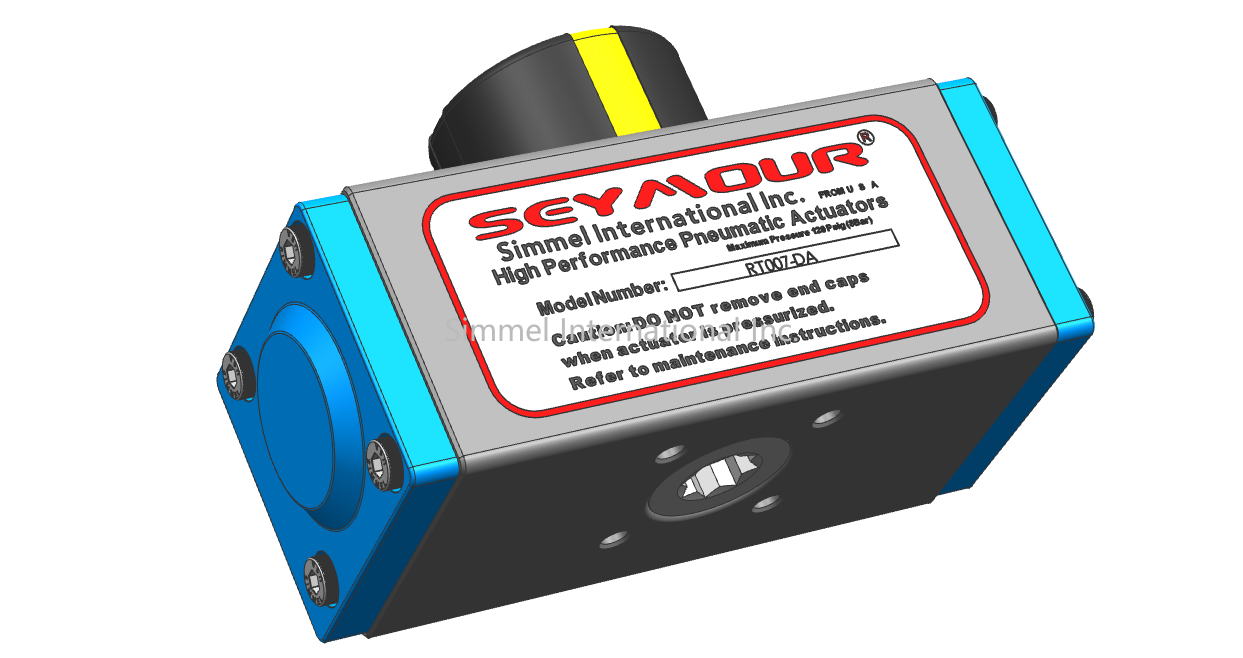

铝合金双作用气动执行器 RT007DA
产品概述
美国西美尔RT007DA气动执行器是一款专为工业自动化领域设计的高性能气动控制设备。凭借其卓越的可靠性和精准的控制能力，RT007DA已成为众多工业应用中的首选执行器。该产品采用先进的气动技术，确保在严苛的工况环境下仍能保持稳定运行，满足不同行业的多样化需求。
核心特点
- 高效稳定：优化的气动设计确保快速响应和持久稳定性
- 坚固耐用：采用高强度材料制造，适应各种恶劣工业环境
- 精准控制：提供精确的位移和力输出，满足高精度应用需求
- 低维护：简化设计减少维护需求，降低使用成本
- 广泛兼容：标准接口设计，易于与各类控制系统集成
典型应用
RT007DA气动执行器广泛应用于以下领域：
- 工业自动化生产线
- 过程控制系统
- 包装机械
- 物料搬运设备
- 测试与测量系统
技术优势
RT007DA气动执行器融合了多项创新技术：
- 优化的气路设计减少能量损耗，提高效率
- 精密加工的导向部件确保运动平稳精确
- 耐腐蚀表面处理延长使用寿命
- 模块化设计便于维护和更换部件
适用行业
RT007DA特别适合以下行业应用：
- 汽车制造
- 食品加工
- 制药行业
- 电子制造
- 能源领域
Specifications
Simmel齿轮齿条铝合金气动执行机构
执行器输出扭矩
双作用执行器（DA） 106 to115,272 in-lb (12 to 13,024 Nm)
单作用执行器（SR） 97 to 58,273 in-lb (11 to 6,584 Nm)
材质
铝合金
不锈钢
防护等级
IP67 IP68
驱动方式
气动，气动+手动
温度范围
-13°F to 176°F (-25°C to 80°C)
-40°F to 176°F (-40°C to 80°C)
-13°F to 300°F (-25°C to 150°C)
控制附件选项
手轮机构
电磁阀 减压阀
限位开关
Maximum Allowable Operating Pressure
Up to 120 psig (8 Bar)
控制选项
开-关, 调节, 双作用, 单作用
安装
VDI/VDE 3845 Compliant (NAMUR) or ISO 5211 DIN337
气源介质
Dry Compressed Air, Inert Gas
气源尺寸
1/4”NPT or 1/2”NPT or 3/8”NPT or 1/4”G or 1/2”G or 3/8”G
行程角度
0-90°, 45°，135°，140°，180°, 360° , 三位（段）式
阀门应用
气动蝶阀, 气动球阀
Features & Benefits
Actuator Body
According to the different requirements, the extruded aluminum alloy ASTM6005 Body can be treated with hard anodized, powder polyester painted (different colours is available such as blue, orange, yellow etc.), PTFE or Nickel plated.
End caps
Die-casting aluminum powder polyester painted in different colours, PTFE or Nickel plated.
Pistons
The twin rack pistons are made from Die-casting aluminum treated with Hard anodized or made from Cast steel with galvanization. Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
Travel adjustment
The two independent external travel stop adjuatment bolts can adjust +5° at both open and close directions easily and precisely.
High performance springs
Preloaded coating springs are made from the high quality material for resistant to corrosion and longer service life, which can be demounted safely and conveniently to satisfy different requirements of torque by changing quantity of springs.
Actuator Body
According to the different requirements, the extruded aluminum alloy ASTM6005 Body can be treated with hard anodized, powder polyester painted (different colours is available such as blue, orange, yellow etc.), PTFE or Nickel plated.
End caps
Die-casting aluminum powder polyester painted in different colours, PTFE or Nickel plated.
Pistons
The twin rack pistons are made from Die-casting aluminum treated with Hard anodized or made from Cast steel with galvanization. Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
Travel adjustment
The two independent external travel stop adjuatment bolts can adjust +5° at both open and close directions easily and precisely.
High performance springs
Preloaded coating springs are made from the high quality material for resistant to corrosion and longer service life, which can be demounted safely and conveniently to satisfy different requirements of torque by changing quantity of springs.
Actuator Body
According to the different requirements, the extruded aluminum alloy ASTM6005 Body can be treated with hard anodized, powder polyester painted (different colours is available such as blue, orange, yellow etc.), PTFE or Nickel plated.
End caps
Die-casting aluminum powder polyester painted in different colours, PTFE or Nickel plated.
Pistons
The twin rack pistons are made from Die-casting aluminum treated with Hard anodized or made from Cast steel with galvanization. Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
Travel adjustment
The two independent external travel stop adjuatment bolts can adjust +5° at both open and close directions easily and precisely.
High performance springs
Preloaded coating springs are made from the high quality material for resistant to corrosion and longer service life, which can be demounted safely and conveniently to satisfy different requirements of torque by changing quantity of springs.
