ART012SR 单作用气动执行器
—— PRODUCTS CENTER ——
概述
‹
›
技术参数
性能 & 优势
Actuator Body
According to the different requirements, the extruded aluminum alloy ASTM6005 Body can be treated with hard anodized, powder polyester painted (different colours is available such as blue, orange, yellow etc.), PTFE or Nickel plated.
End caps
Die-casting aluminum powder polyester painted in different colours, PTFE or Nickel plated.
Pistons
The twin rack pistons are made from Die-casting aluminum treated with Hard anodized or made from Cast steel with galvanization. Symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons.
Travel adjustment
The two independent external travel stop adjuatment bolts can adjust +5° at both open and close directions easily and precisely.

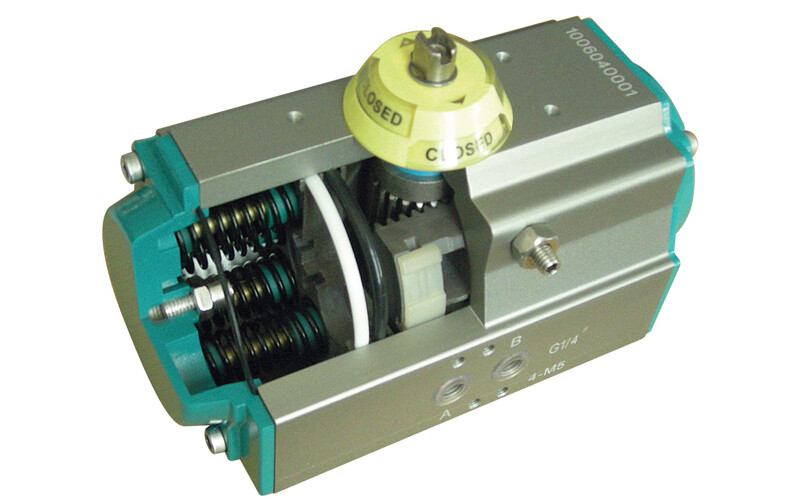

High performance springs
Preloaded coating springs are made from the high quality material for resistant to corrosion and longer service life, which can be demounted safely and conveniently to satisfy different requirements of torque by changing quantity of springs.
